| S. No. |
Particular |
Description |
| 1 |
Material |
Special grade stainless steel that’s thick enough for refractory lines. The whole structure is made from stainless steel 304, with a minimum thickness ranging from 1 to 5 mm. |
| 2 |
Cremation Time |
30-90 minutes |
| 3 |
Furnace Specification |

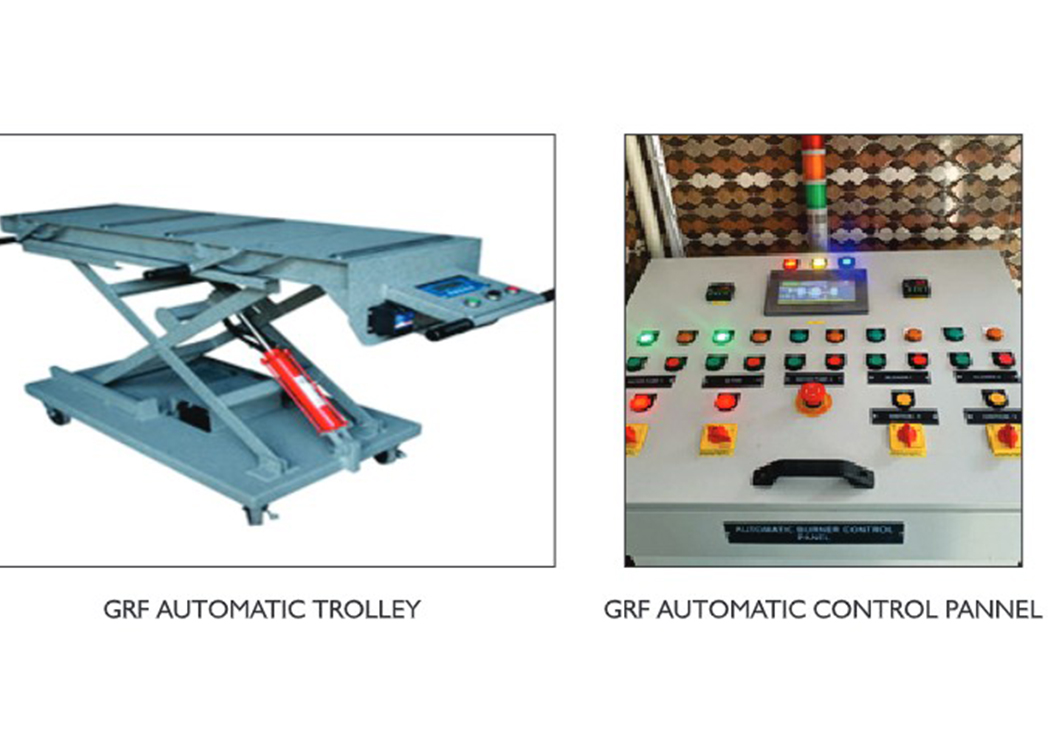

Size: 11.5 feet (L) X 6 Feet (W) X 6 FEET (H) Manually Charged Trolley material SS304 to move the corpse inside the Furnace |
| 4 |
Incinerating Chamber Dimensions |
Size: 08 ft(L) X 4.5 ft(W) X 4.5 ft(H) |
| 5 |

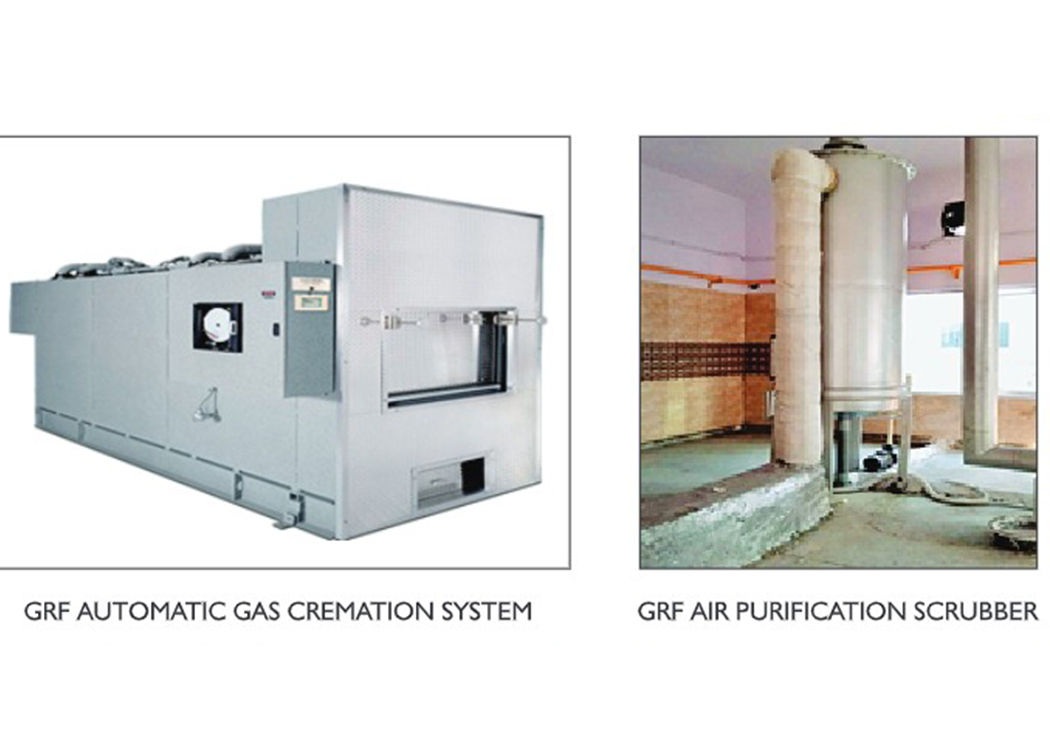

Wet Scrubber |
3mm thick Ss304 plate, featuring cutting-edge three-stage decarbonization filtration technology. It stands tall at 12.5 feet and has a diameter of 3 feet, all made from high-quality 304-grade stainless steel. |
| 6 |
Door |
Front opening door 4ft x 3ft with hinges |
| 7 |
Temperature in Chamber |
Primary Chamber Temperature 750 degree C |
| 8 |
Machine Accessories |
Clean Out ports, packing support Grid, Strainer, Safety accessories, water level indicator, Inspection vent, Drain valve with ball valve, water controller valve. Thermocouple, Pressure Gauge, |
| 9 |
Civil Work |
As per Guidelines proposed and required by the authority |
| 10 |
Space Required |
30 X 30 ft for One Incinerator |
| 11 |
Blower (Optional) |
3 hp power supply with very high RPM |
| 12 |
Control Panel (Automatic) |
We supply one unit of scrubbing pumps ranging from 1.5 to 3 HP, along with one unit of ID fans that operate between 3 to 6 HP and come with timed control features. Additionally, an automatic control panel based on HMI and PLC, which also allows for manual operation, is required. Don't forget the sophisticated variable drives that utilize fans to help manage temperatures. |
| 13 |
ID Fan |
3-6 HP ID FAN FOR SUCTION OF SMOKE |
| 14 |
Scrubber Efficiency |
As per the guidelines of CPCB |
| 15 |
Burning Capacity |
150-200 kg per hour |
| 16 |
Operator |
Can be operated by semi-skilled/skilled labor |
| 17 |
Emission |
As per DPCC/CPCB |
| 18 |
Clean Outdoor |
Width maximum 5ft and height maximum Ift 5 inches |
| 19 |
Front door frame |
4 x 3.5 feet |
| 20 |
Advance HMI and PLC control |
Introducing a fully automatic digital PLC control panel with an integrated system for real-time parameter display. It features a user-friendly one-touch operation and a vibrant 7-inch touchscreen. The HMI includes data recipe management, event logging, and event triggering functions for efficient and reliable control. |
| 21 |
Operating Voltage |
415-440 V, 4.5-5 KW, 3 phase AC 50 C/S |
| 22 |

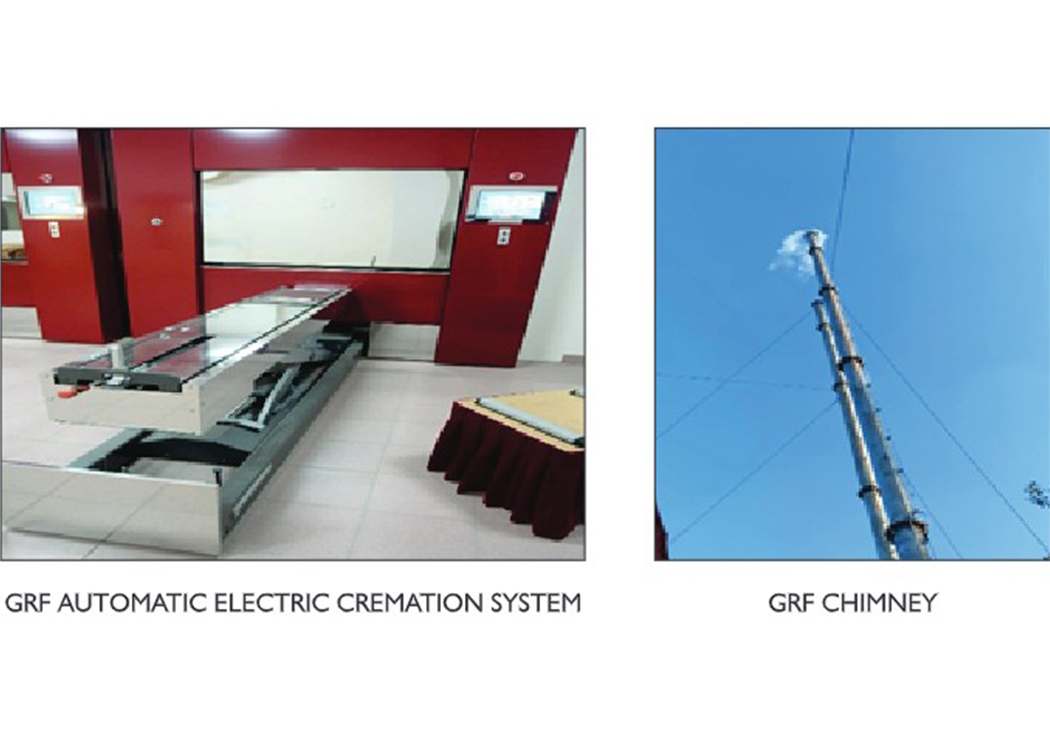

Chimney |
Height of Chimney will be as per norms of CPCB (10 meter), base diameter 1200mm, bottom diameter 324 mm, 22 mm dia. half thread high tension nut/bolts with one spring washer and two plain washers, Foundation bolts 32mm x 900 mm Long, Steel core wire rope 10mm dia. Self- supported type with suitable earthing strip, aviation light Lightening arrestor, ladder with platform, plates etc. |
